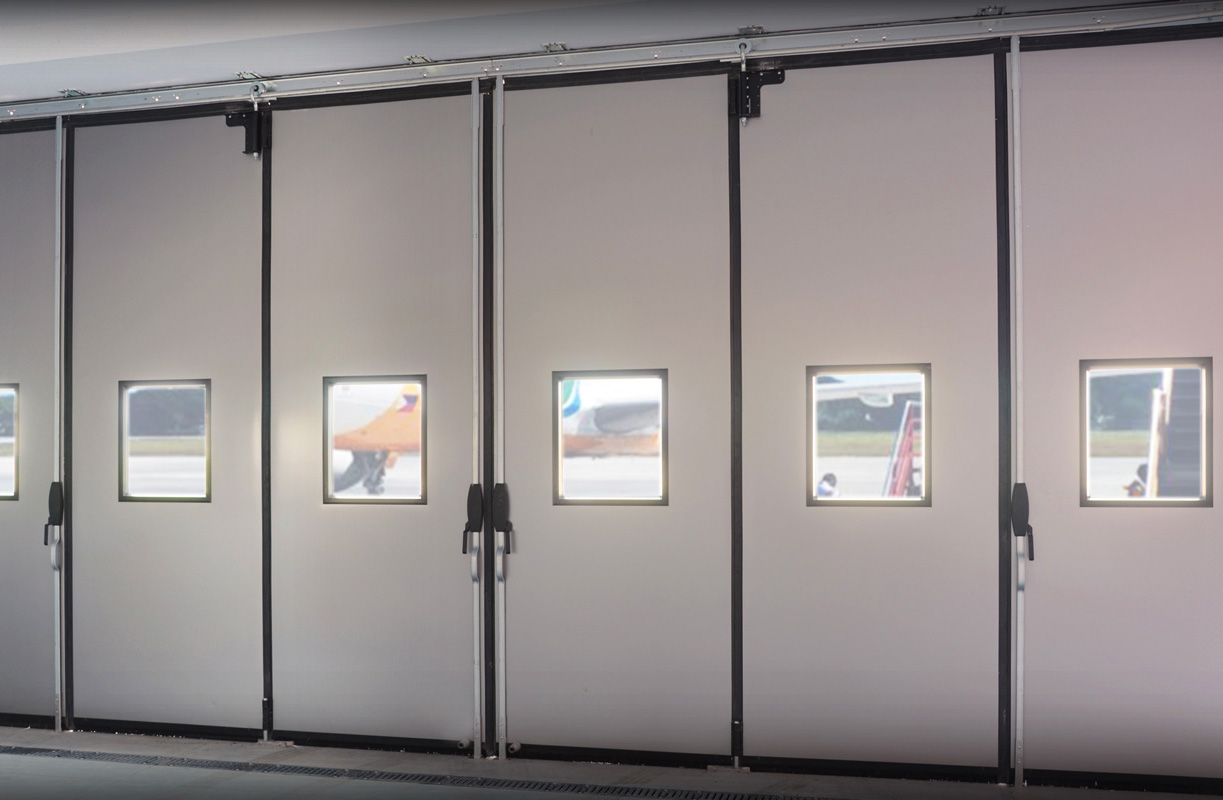

Liber Bi-Folding Doors
The Liber Superthermic Insulated Bi-Folding Doors offer a solution for large openings, accommodating widths of up to 12 metres and heights of 6 metres. Designed with versatility in mind, these doors can open to one or both sides with various leaf configurations, making them ideal for diverse applications.
Key Benefits:
- Enhanced Thermal Insulation: Utilising our Superthermic panel, these insulated bi-folding doors have a thermal insulation rating of 1.53 W/m².˚K. For superior performance, the ISOMAX panel offers 1.15 W/m².˚K.
- High Wind Resistance: Built to withstand challenging weather conditions, the doors are rated to Class 4 wind resistance.
- Space-Saving Design: The simplistic top rail and side-hinged system require only 150mm of headroom, opening to 90 or 180 degrees, allowing for large openings without the need for a bottom track.
- Customisable: Available in eight standard colours, with an optional painted finish, the pre-coated steel skins can be customised to meet your specifications. Alternatively, aluminium panels are available upon request.
- Integrated Wicket Door: The Liber door features a full-width wicket door that can be supplied with or without a threshold, providing added fire safety and security.
- Burglary resistance: the Liber door is tested and certifiec for class RC3 or RC2 (with wicket door).

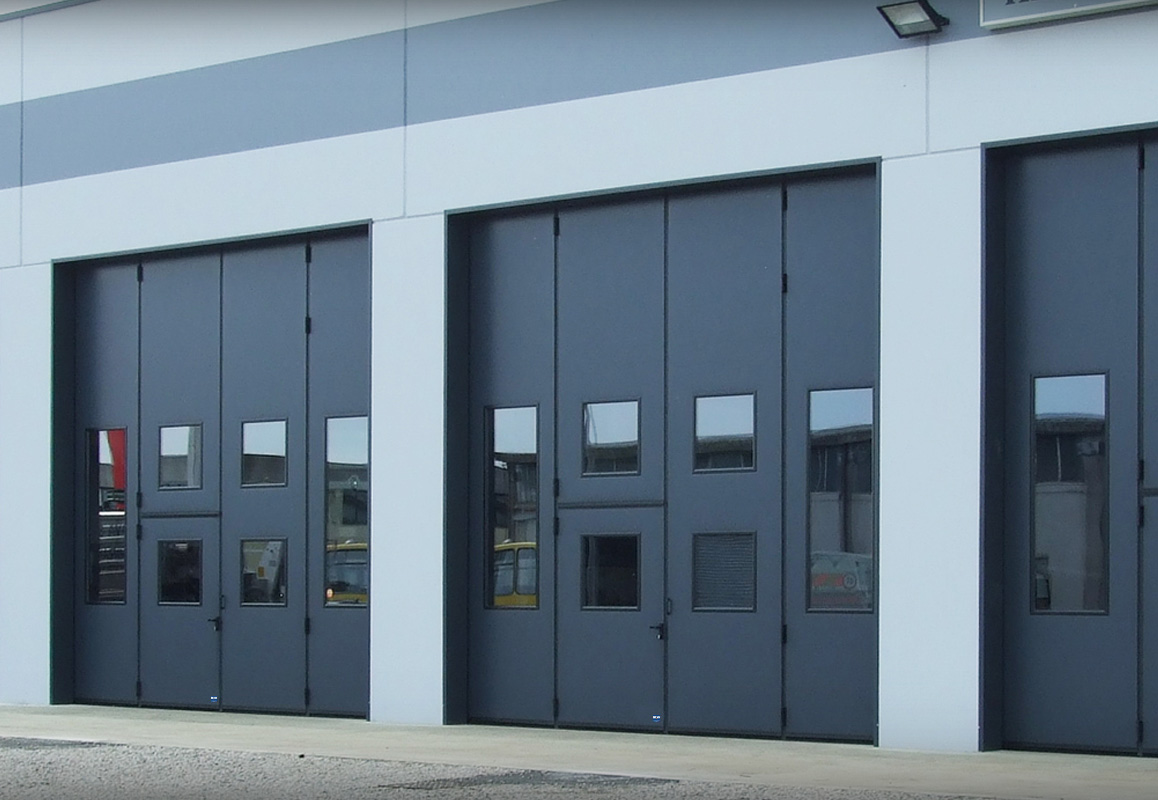

Technical Specifications
- Maximum width of 12000mm (12 metres) and maximum height of 6000mm (6 metres), subject to the application.
- Available in manual or electric operation, with standard opening speeds of up to 200mm per second, depending on size, facilitated by a 240v single-phase drive.
- Designed with emergency opening capabilities.
- Manufactured from 55mm thick, high-density foam-filled twin-skin steel panels with a concealed hinge system, complying with EN12424 Class 4 wind load standards and other relevant safety regulations.
- Designed with an integrated locking shoot bolt and optionally available automated doors equipped with safety edges and photocells.
- CE marked.
- Fully adjustable top track, leaves, hinges, and bottom seal for quick installation with sealing and no ground track.
DID Hangar Doors are suitable for the following:
Airplanes
Industrial doors ensure secure, efficient access for aeroplane hangar operations.
Ambulances
Fast industrial doors allow secure exits, enabling rapid ambulance responses.
Helicopters
Helicopter bays require specialised industrial doors for rapid, secure access.
Equipment Storage
Industrial doors safeguard equipment storage, ensuring readiness for deployment.
Fire Vehicles
Durable doors enable quick access for fire vehicles during emergencies.
Trains and
Rolling Stock
Industrial doors enhance logistics for train and rolling stock operations.
Workshop and
Maintenance Buildings
Workshop doors allow maintenance teams swift access to essential equipment.

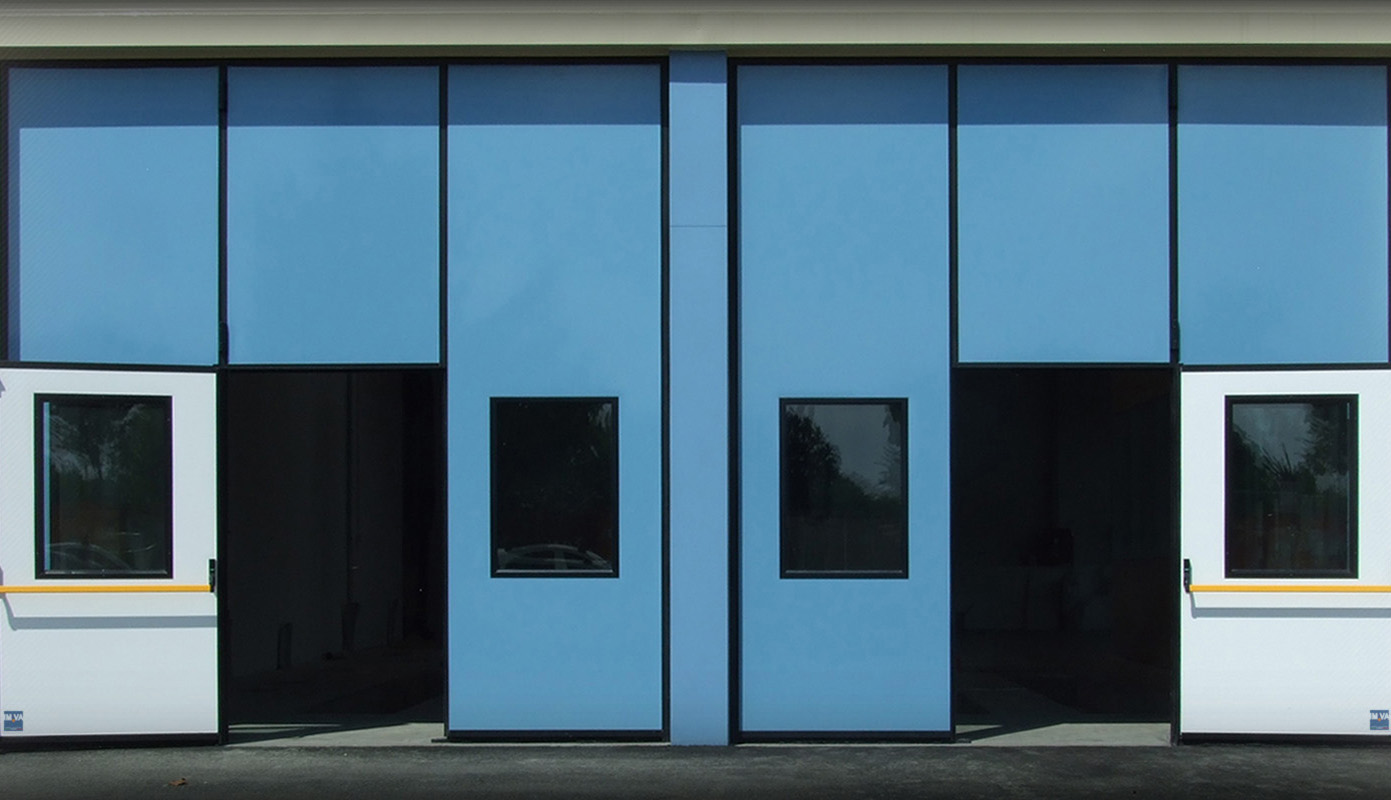

Windows
Customisable windows can be incorporated into every Liber door leaf, tailored to specific dimensions.
Rubber
- Constructed with a black EPDM frame featuring rounded corners (radius approx. 130mm).
- Accommodates safety glass up to 10mm thick.
Aluminium with Thermal Break
- Manufactured from aluminium profiles with 90° mitred corners.
- Supports safety glazed glass up to 40mm thick and can be customised into any geometric shape.
- Special low U-value glass available upon request for compliance with building control requirements.

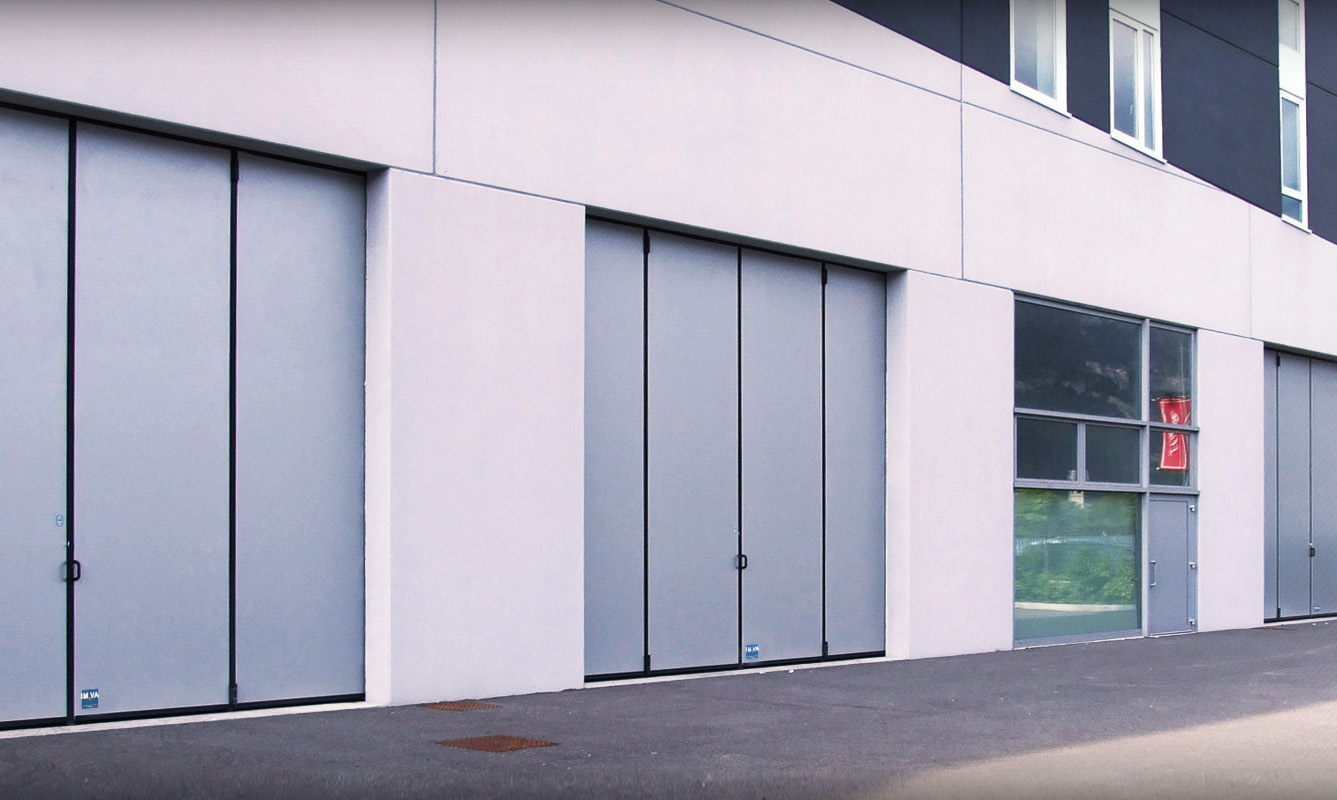

Applications
These bi-folding hangar doors are suited for various industrial settings:
- Aviation and shipyards
- Fire & Ambulance Stations
- Trains Trams & Transport
- Storage
- Education
- Workshops and maintenance
For more information about Liber doors and how they can enhance your hangar, contact us. We are highly experienced insulated bi-folding door suppliers, and our team is available to assist in the design, installation, and aftercare of your chosen hangar door system.
