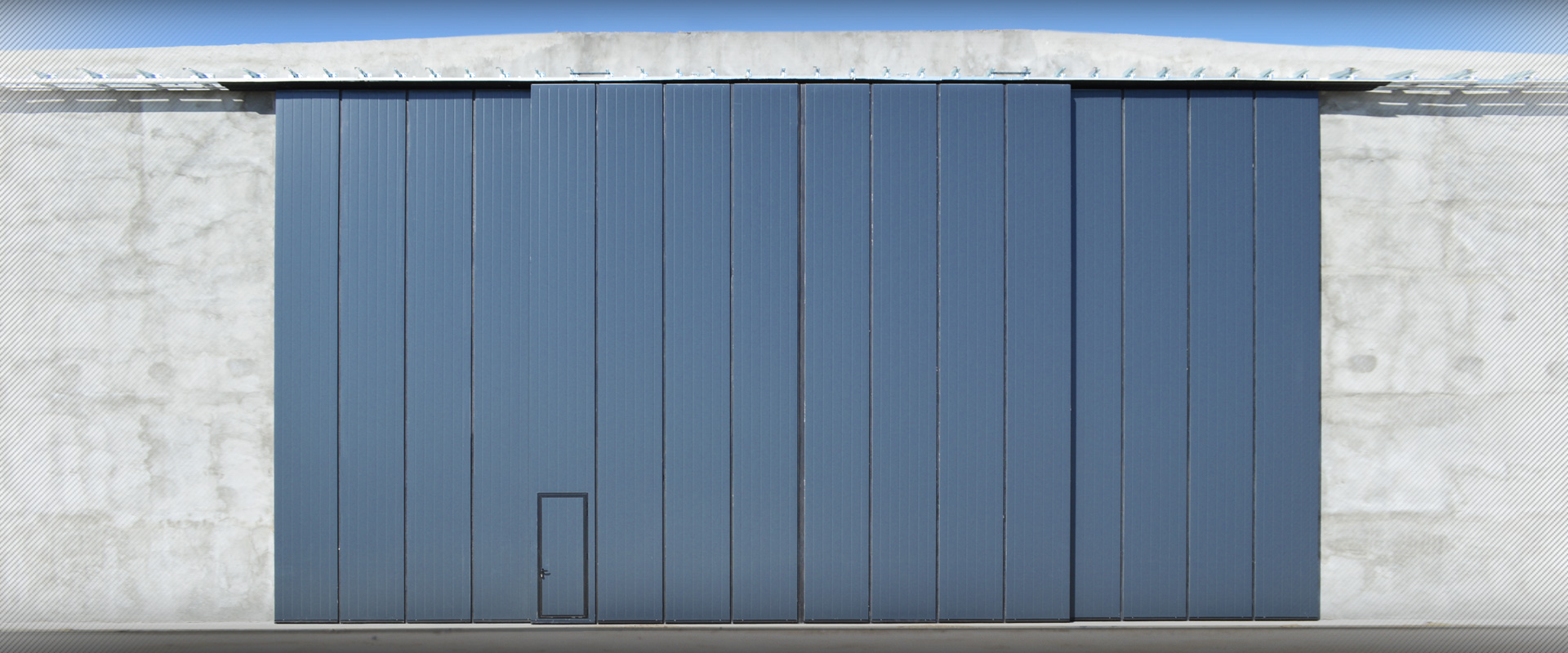

Flux Sliding Industrial Doors
Our Flux door is a sliding industrial door for all sizes of openings (those regarded as small, medium or large) i.e. unilateral or bilateral openings with either manual or chain-driven motorised drive options. We supply and fit these doors in three variants, standard, telescopic and corner.
The Flux offers the following benefits:
- Self-Extinguishing Insulation – Class B2 CFC free, high pressure 40Kg/m² polyurethane insulation
- Entrance and Exit options – The doors can be opened and closed manually or can be motorised
- CE Marking – Our doors are CE marked with class 4 wind load resistance, 1.53 Thermal Resistance, 22dB noise reduction, and S-S1 d0 fire resistance
- Weather protection – Air and water tight EPDM gaskets between panels and lintels, which are simple to replace when required
- Well made and pretreated – The double skin coating of galvanised steel sheets is pre-painted with Sendzimir treatment

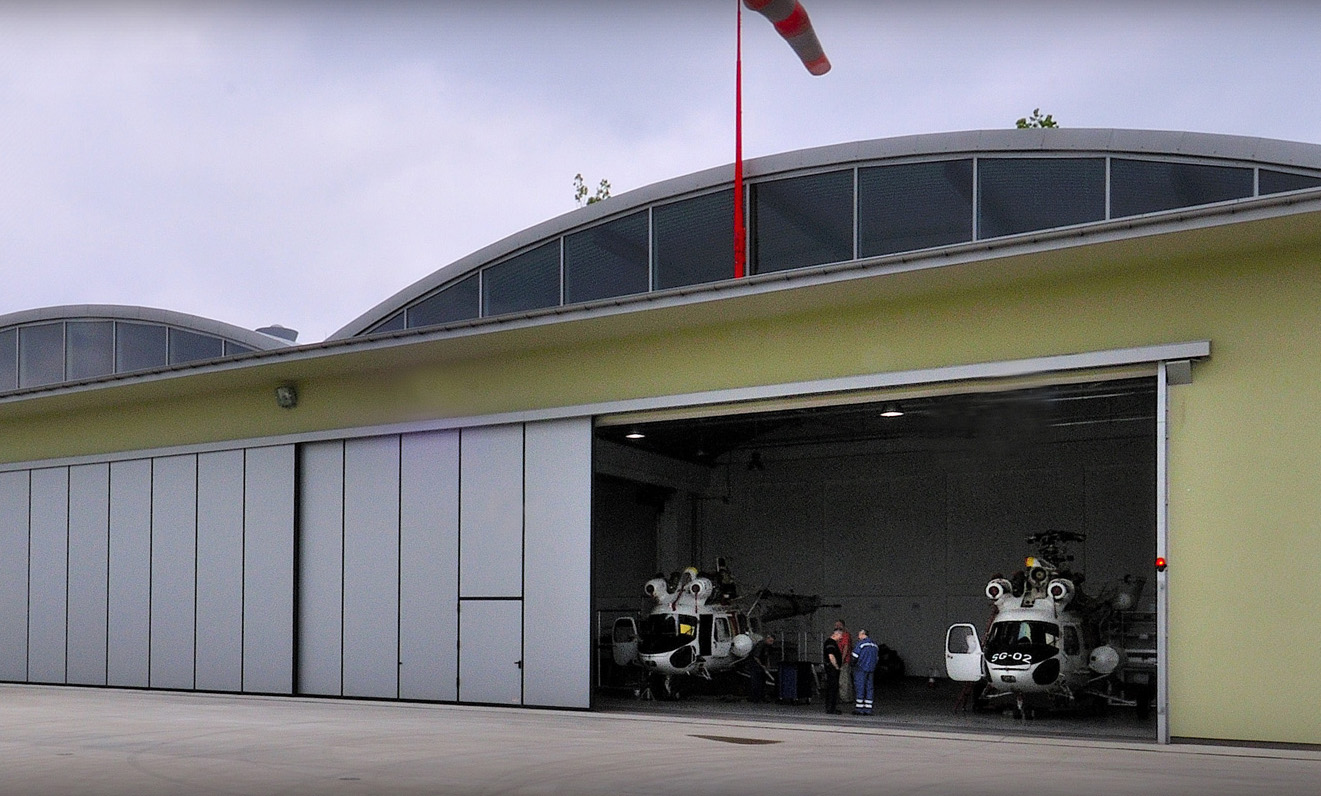

Flux Standard Sliding Door
This door is available as:
- Top hung, with a recessed bottom floor rail and rollers
- Top hung, without floor rail. Support is via nylon holders fixed to the floor
- Ground supported, with top rail. This uses an anti-derailment system with the wheels of the doors sitting on U grooves, sliding on a recessed lower floor rail
An exceptional sliding industrial door, that is characterised by its flexibility, unique construction and assembly structure that makes it suitable for any type of industrial sector, including large openings.
- Self-supporting door leaves with variable dimensions and a maximum height of 10000 (mm)
- Door leaf thickness options, 55mm up to 6000 high, 65mm up to 8000 high, 80mm up to 10000 high and 120mm up to 12500 high
- Door leaf width options of 1200mm or 1450mm
- Door leaf height options of 6000mm, 8000mm, and 10000mm
- Maximum height 6000 with non-standard taller options (mm)
- Leaf configurations can be unilateral or bilateral linear sliding on a single rail
Options include:
- Pedestrian swing door
- Inspection window options
- Ventilation grill
Colour options include:
- Staved panel (vertical ribs, 160 mm pitch)
- Smooth sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005, blue RAL 5010, red RAL 3000, brown RAL 8019, grey RAL 7016, wood tone SL65
- Embossed sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005
- Optional RAL colours available

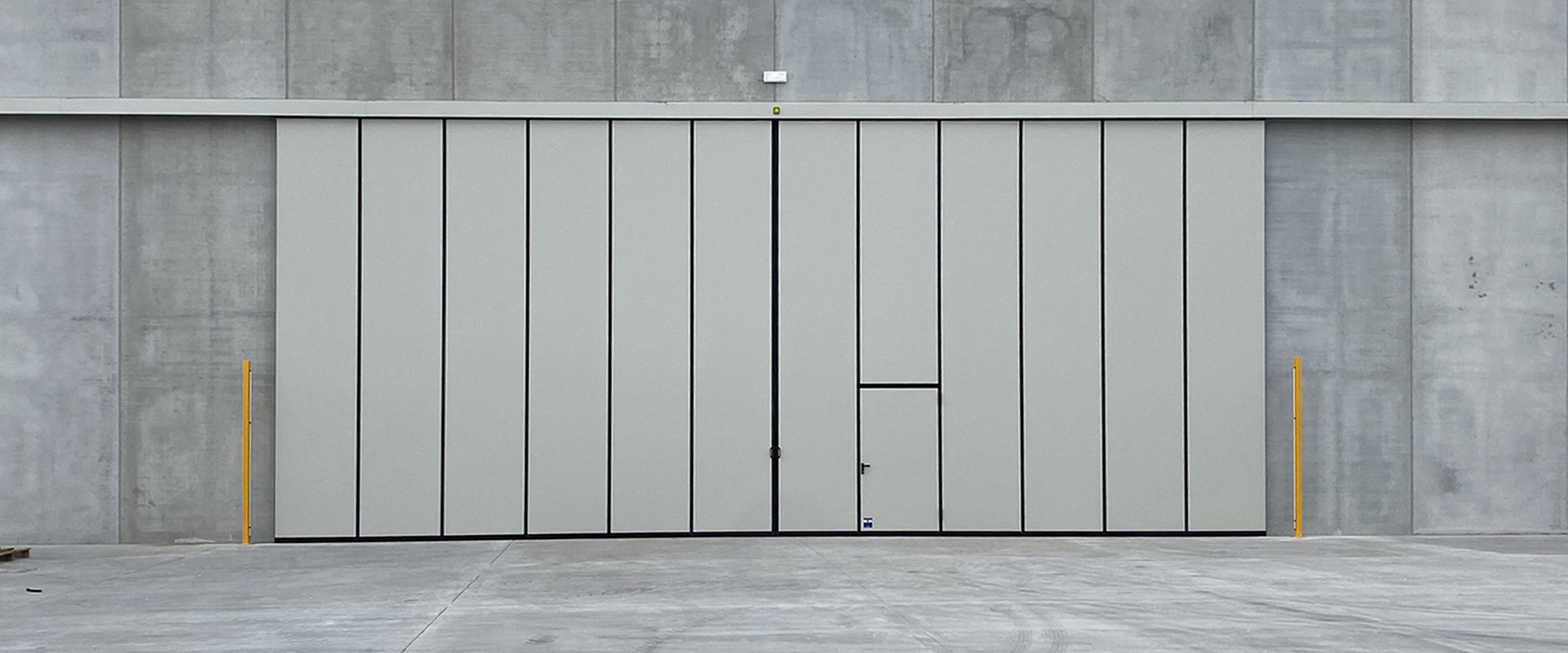

Flux Telescopic Sliding Door
This door is available as:
- Hung with a recessed bottom floor rail
- Ground supported, with top rail. This uses an anti-derailment system with the wheels of the doors sitting on U grooves, sliding on a recessed lower floor rail
The FLUX Telescopic uses a linear movement and sliding system that overlaps, with parallel rails to reach considerable lengths and is useful in medium and large openings.
- Self-supporting door leaves with variable dimensions and a maximum height of 10000 (mm)
- Door leaf thickness options, 55mm up to 6000 high, 65mm up to 8000 high, 80mm up to 10000 high and 120mm up to 12500 high
- Door leaf width options of 1200 or 1450 (mm)
- Door leaf height options of 6000mm, 8000mm, and 10000mm
- Maximum height 6000 with non-standard taller options (mm)
- Leaf configurations can be unilateral or bilateral linear sliding on a single rail
Options include:
- Pedestrian swing door
- Inspection window options
- Ventilation grill
Colour options include:
- Staved panel (vertical ribs, 160 mm pitch)
- Smooth sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005, blue RAL 5010, red RAL 3000, brown RAL 8019, grey RAL 7016, wood tone SL65
- Embossed sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005
- Optional RAL colours available

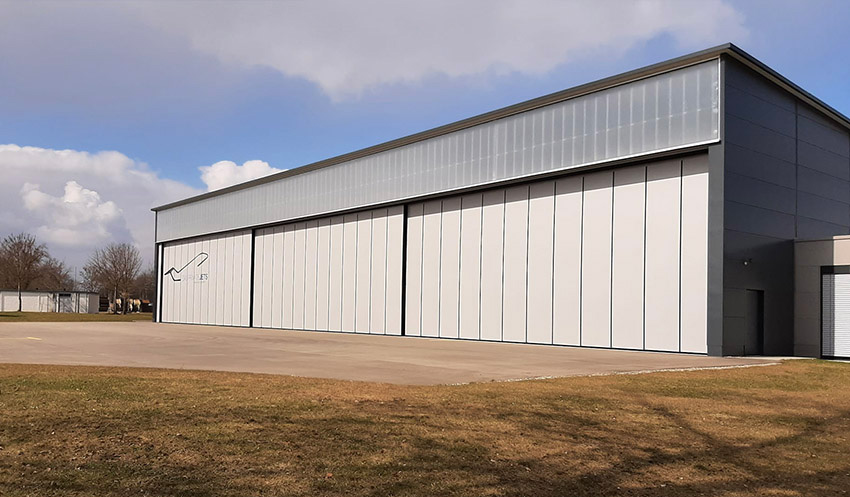

Flux Corner Sliding Door
The FLUX Corner Sliding Door is available as:
- Hung with a recessed bottom floor rail
- Ground supported, with top rail. This uses an anti-derailment system with the wheels of the doors sitting on U grooves, sliding on a recessed lower floor rail
The FLUX Telescopic uses a linear movement and sliding system that overlaps, with parallel rails to reach considerable lengths and is useful in medium and large openings.
- Self-supporting door leaves with variable dimensions and a maximum height of 10000 (mm)
- Door leaf thickness options, 55mm up to 6000 high, 65mm up to 8000 high, 80mm up to 10000 high and 120mm up to 12500 high (mm)
- Door leaf width options of 1200 or 1450 (mm)
- Door leaf height options of 6000/8000 and 10000 (mm)
- Maximum height 6000 with non-standard taller options (mm)
- Leaf configurations can be unilateral or bilateral linear sliding on a single rail
Options include:
- Pedestrian swing door
- Inspection window options
- Ventilation grill
Colour options include:
- Staved panel (vertical ribs, 160 mm pitch)
- Smooth sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005, blue RAL 5010, red RAL 3000, brown RAL 8019, grey RAL 7016, wood tone SL65
- Embossed sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005
- Optional RAL colours available
Applications
These bi-folding hangar doors are suited for various industrial settings:
- Aviation and shipyards
- Fire & Ambulance Stations
- Trains Trams & Transport
- Storage
- Education
- Workshops and maintenance
For more information about Liber doors and how they can enhance your hangar, contact us. We are highly experienced insulated bi-folding door suppliers, and our team is available to assist in the design, installation, and aftercare of your chosen hangar door system.
